R122
Forged steel-quenched and tempered.
Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
All Bolts Hot Dip Galvanized or Electro galvanized after threading (UNC).
Furnished with standard Hot Dip Galvanized or Electro Galvanized hex nuts.
Recommended for in-line or straight application.
FOS: 5:1

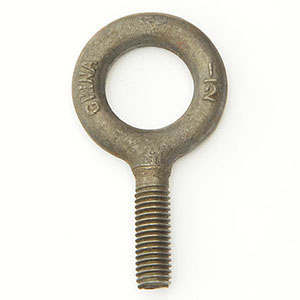

SCREW FORMED EYE BOLT

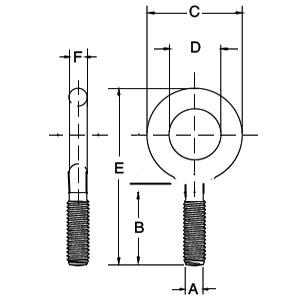

| SIZE (IN) | WEIGHT PER 100 (LBS.) | DIMENSIONS(IN) | ||||||
| THREAD A | B | C | D | E | F | G | ||
| 5/8"*3-7/8" | 0.1 | 0.645 | 0.249 | 1.133 | 3.98 | 2.648 | 1.868 | 0.249 |
| 3/4"*3-1/8" | 0.1 | 0.773 | 0.271 | 1.309 | 3.115 | 1.614 | 1.059 | 0.285 |
| 1"*3-1/2" | 0.14 | 0.995 | 0.29 | 1.574 | 3.63 | 1.905 | 1.561 | 0.296 |
