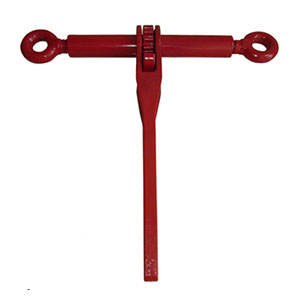

RATCHET TYPE LOAD BINDER WITH NO LINKS OR HOOKDS
End fittings are Quenched and Tempered or Normalized, bodies heat treated by normalizing.
Material is carbon steel C1045/#45.
Hot Dip galvanized or Electro galvanized.
Lock Nuts are available for all sizes.
Recommended for straight or in-line pull application.
FOS: 5:1
L-140 STANDAR RATCHET TYPE LOAD BINDERS
| MIN-MAX CHAIN SIZE (MM) | WORKING LOAD LIMIT (T) | PROOF LOAD (KN) | WEIGHT EACH(KG) | HANDLE LENGTH (MM) | BARREL LENGTH (MM) | TAKE UP (MM) | DIMENSIONS(MM) | |||||||

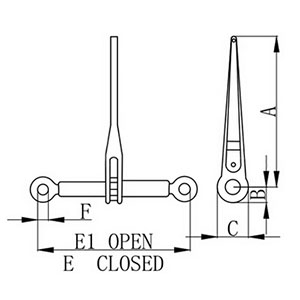

| A | B | C | E | E1 | F | F1 | G | |||||||
| 8-10 | 4 | 79 | 5.49 | 356 | 254 | 203 | 356 | 35.1 | 70 | 583 | 786 | 638 | 842 | 12.7 |
| 10-13 | 6.8 | 134 | 6.66 | 356 | 254 | 203 | 356 | 35.1 | 70 | 641 | 845 | 702 | 905 | 16 |
| 13-16 | 7.26 | 143 | 6.6 | 356 | 254 | 203 | 356 | 35.1 | 70 | 670 | 873 | 748 | 951 | 18.3 |
